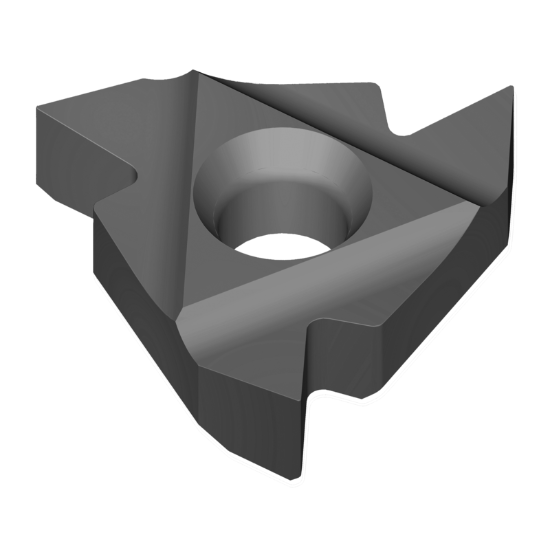

VARDEX 3IRAG60 VK2P Insert Iso Thread Partial Profile 8.00TPI - 48.00TPI 3.18MM - 0.53MM 60.0°

ANSI: 3IRAG60 VK2P

ISO: 3IRAG60 VK2P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR54215
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

highly polished for exceptional performance for high quality surface finish in aluminium.

Products specifications
Attribute name Attribute value
General Product Information
Full Or Partial Profile Partial Profile
Insert Application General Purpose
Application Int.Threading Insert
Shipping State Wisconsin
Made In USA No
Package Size 10
Insert/Tool Insert
Insert Type Positive
Grade VK2P
Dimensional Specifications
Corner Radius 0.0020 0.05MM
Thread Pitch 8.00TPI - 48.00TPI 3.18MM - 0.53MM
Cut Rating Aluminum, High Temp
Thread Type 60.0°
Insert Size Ic 16
Cutting & Machining Properties
Insert Style ISO
Cutting Edge Mat Carbide
Hand R/L Right
Thread Teeth 1
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
