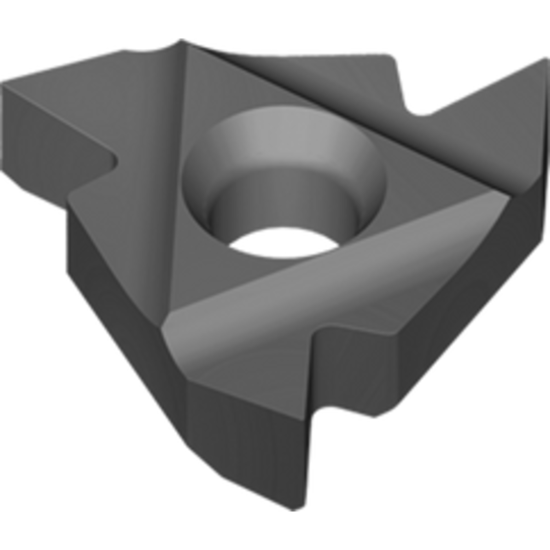

VARDEX 3IL11UN VK2P Insert Iso Thread Full Profile 11.00TPI UN

ANSI: 3IL11UN VK2P

ISO: 3IL11UN VK2P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR54107
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

highly polished for exceptional performance for high quality surface finish in aluminium.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Int.Threading Insert
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Insert Type Positive
Grade VK2P
Full Or Partial Profile Full Profile
Package Size 10
Dimensional Specifications
Thread Type UN
Thread Pitch 11.00TPI
Insert Size Ic 16
Cut Rating Aluminum, High Temp
Cutting & Machining Properties
Thread Teeth 1
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Left
Insert Style ISO
Cutting Edge Mat Carbide
