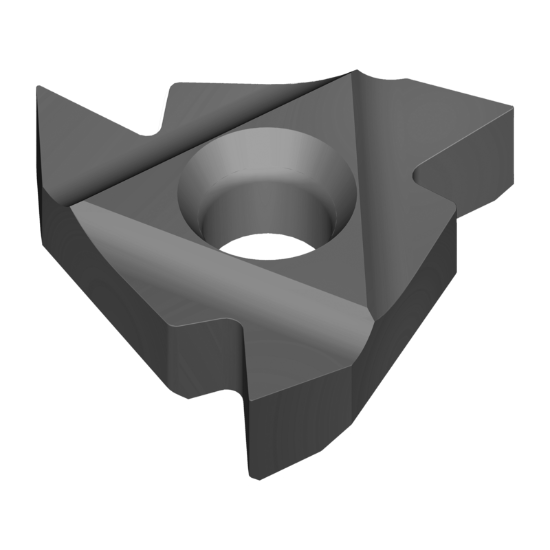

VARDEX 3ERAG60 VK2P Insert Iso Thread Partial Profile 8.00TPI - 48.00TPI 3.18MM - 0.53MM 60.0°

ANSI: 3ERAG60 VK2P

ISO: 3ERAG60 VK2P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR54103
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

highly polished for exceptional performance for high quality surface finish in aluminium.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert/Tool Insert
Application Ext.Threading Insert
Insert Type Positive
Full Or Partial Profile Partial Profile
Grade VK2P
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Thread Type 60.0°
Corner Radius 0.0031 0.08MM
Thread Pitch 8.00TPI - 48.00TPI 3.18MM - 0.53MM
Cut Rating Aluminum, High Temp
Cutting & Machining Properties
Inter/Extern External
Cutting Edge Mat Carbide
Insert Style ISO
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Thread Teeth 1
