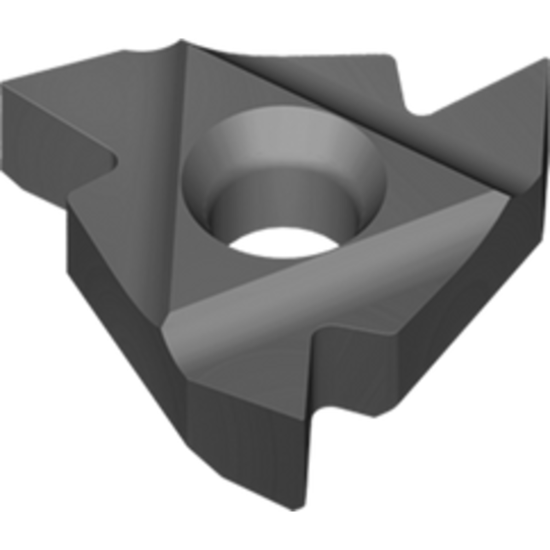

VARDEX 2IL1.5ISO VK2 Insert Iso Thread Full Profile 1.50MM Metric

ANSI: 2IL1.5ISO VK2

ISO: 2IL1.5ISO VK2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR50177
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

uncoated grade for non-ferrous, cast iron and titanium-alloy materials

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Positive
Full Or Partial Profile Full Profile
Made In USA No
Grade VK2
Insert Application General Purpose
Application Int.Threading Insert
Shipping State Wisconsin
Package Size 10
Dimensional Specifications
Cut Rating Aluminum, High Temp
Thread Type Metric
Thread Pitch 1.50MM
Insert Size Ic 11
Cutting & Machining Properties
Inter/Extern Internal
Insert Style ISO
Cutting Edge Mat Carbide
Thread Teeth 1
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
