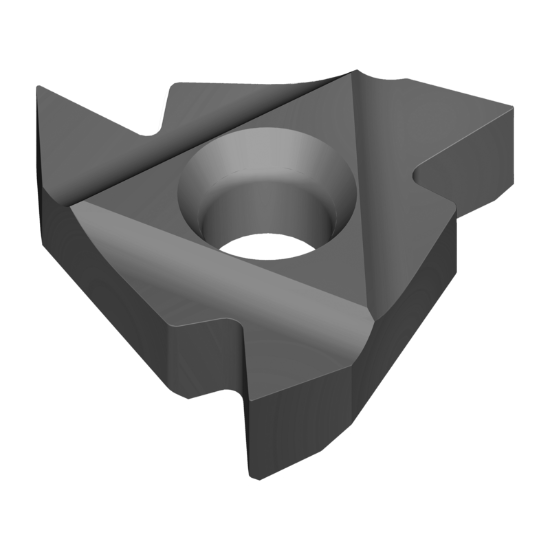

VARDEX 2ERA60 VM7 Insert Iso Thread Partial Profile PVD Multilayer 16.00TPI - 48.00TPI 1.59MM - 0.53MM 60.0°

ANSI: 2ERA60 VM7

ISO: 2ERA60 VM7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR50031
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

a unique performer when threading stainless steel

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Ext.Threading Insert
Insert/Tool Insert
Full Or Partial Profile Partial Profile
Insert Application General Purpose
Coating PVD Multilayer
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Grade VM7
Dimensional Specifications
Cut Rating Stainless
Thread Pitch 16.00TPI - 48.00TPI 1.59MM - 0.53MM
Insert Size Ic 11
Corner Radius 0.0020 0.05MM
Thread Type 60.0°
Cutting & Machining Properties
Insert Style ISO
Cutting Edge Mat Carbide
Hand R/L Right
Thread Teeth 1
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
