  • TUNGALOY XWXPR16-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.000 Shank

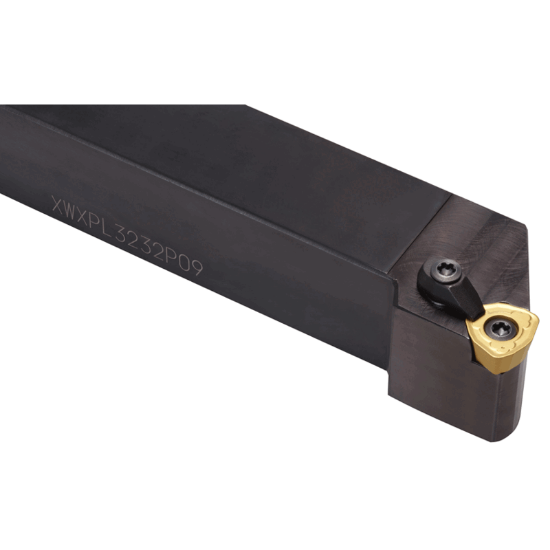

Picture of TUNGALOY XWXPR16-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.000 Shank

TUNGALOY XWXPR16-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.000 Shank

ANSI: XWXPR16-09

ISO: XWXPR16-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853595
Delivery date: 3-5 days
$223.65

Important Notes

Posi,X style, 20deg Approach

Details

Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Insert Application General Purpose
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 25°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Insert Size Ic 9
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WP
Inter/Extern External
