  • TUNGALOY XWXPL24-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.500 Shank

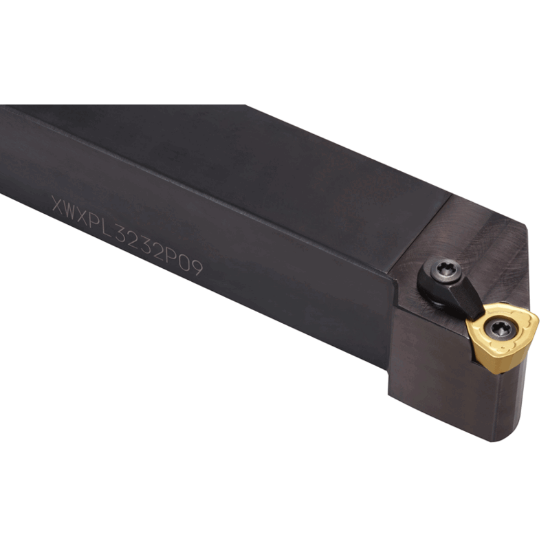

Picture of TUNGALOY XWXPL24-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.500 Shank

TUNGALOY XWXPL24-09 Stick Tool Trigon Insert Posi,X style, 20deg Approach , Steel Square 1.500 Shank

ANSI: XWXPL24-09

ISO: XWXPL24-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853748
Delivery date: 3-5 days
$246.60

Important Notes

Posi,X style, 20deg Approach

Details

Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 7.0000 177.80MM
Lead Angle 25°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style WP
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
Inter/Extern External
