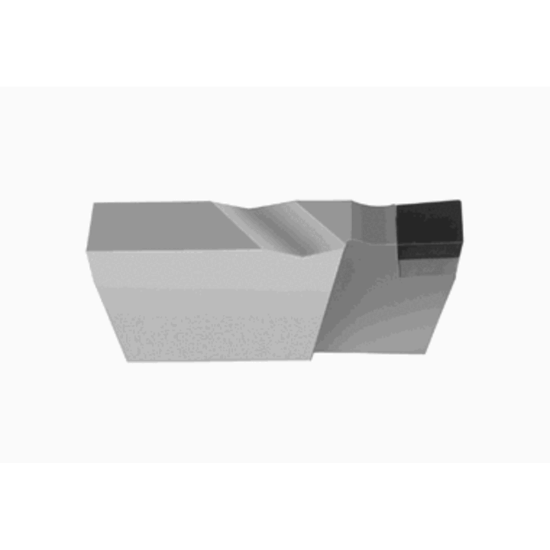

Picture of TUNGALOY XGR6345S-QBN BX360 Clamp Down Cut Off,Grooving Insert 0.007 Corner Radius 0.177 Wide

TUNGALOY XGR6345S-QBN BX360 Clamp Down Cut Off,Grooving Insert 0.007 Corner Radius 0.177 Wide

ANSI: XGR6345S-QBN BX360

ISO: XGR6345S-QBN BX360

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809969
Delivery date: 3-5 days
$163.19

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Groove Turn Ultra hard Inserts

Grade and Coating Description

Suitable for general machining of hardened steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Package Size 10
Insert Type Positive
Insert/Tool Insert
Application Grooving & Parting Insert
Grade BX360
Dimensional Specifications
Corner Radius 0.0079 0.20MM
Depth Of Cut Max 0.7870
Cutting Width 0.1770 4.50MM
Cut Rating >50HRC Steel
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape Top Notch
