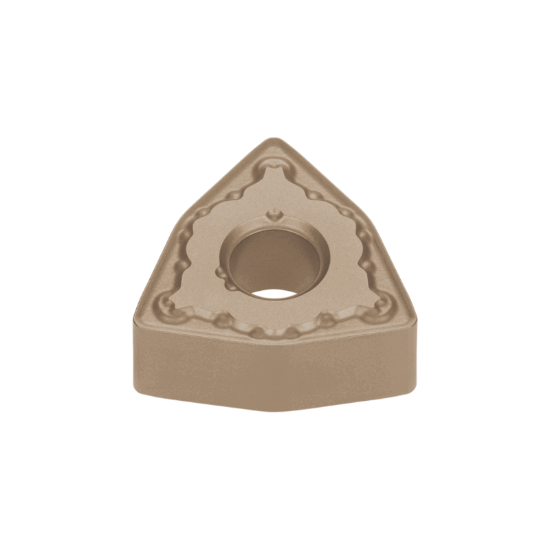

Picture of TUNGALOY WNMG332E FW NS9530 Insert Trigon 0.031 Corner Radius

TUNGALOY WNMG332E FW NS9530 Insert Trigon 0.031 Corner Radius

ANSI: WNMG332E FW NS9530

ISO: WNMG060408E FW NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735930
Delivery date: 3-5 days
$6.42

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Negative relief ang., M class, trigon insert with wiper edge, for finishing.

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Grade NS9530
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Application Turning Insert
Made In USA No
Package Size 10
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 06 "33"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Cutting Edge Mat Cermet
