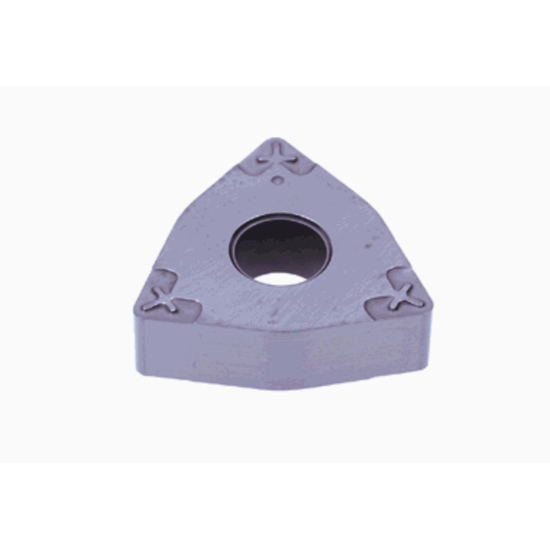

Picture of TUNGALOY WNGG432-01 NS9530 Insert Trigon 0.031 Corner Radius

TUNGALOY WNGG432-01 NS9530 Insert Trigon 0.031 Corner Radius

ANSI: WNGG432-01 NS9530

ISO: WNGG080408 01 NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6997861
Delivery date: 3-5 days
$14.13

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Negative relief ang., G class, trigon insert, for precision finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Application Turning Insert
Package Size 10
Insert Type Negative
Grade NS9530
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Insert Style WN
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
