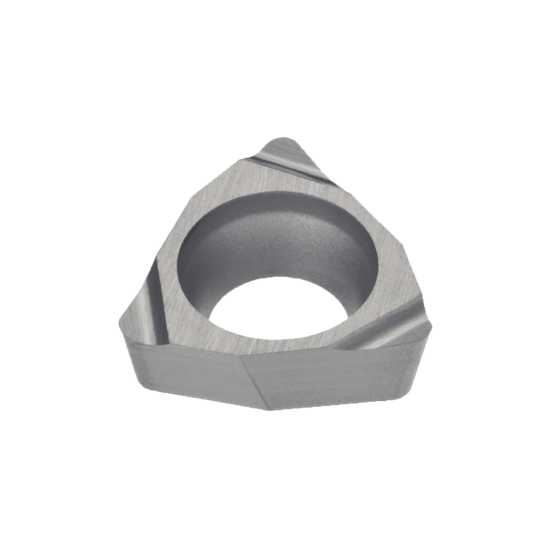

Picture of TUNGALOY WBGT52V L-W08 NS9530 Insert Trigon 0.001 Corner Radius

TUNGALOY WBGT52V L-W08 NS9530 Insert Trigon 0.001 Corner Radius

ANSI: WBGT52V L-W08 NS9530

ISO: WBGT030101 L-W08 NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998037
Delivery date: 3-5 days
$14.01

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 5deg relief ang., G class, trigon insert, lead typechipbreaker for finishing

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Grade NS9530
Shipping State Illinois
Insert/Tool Insert
Insert Type Positive
Insert Application Finishing
Package Size 10
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 03 "52"
Corner Radius 0.0010 0.03MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WB
Cutting Edge Mat Cermet
