  • TUNGALOY VTSD20L170S08-S DIA 11.50MM SH 0.7874 LOC 3.1496 OAL 6.69Replacable Head Acc. Straight Shank/Taper Neck Steel Single End TUNG MEISTER

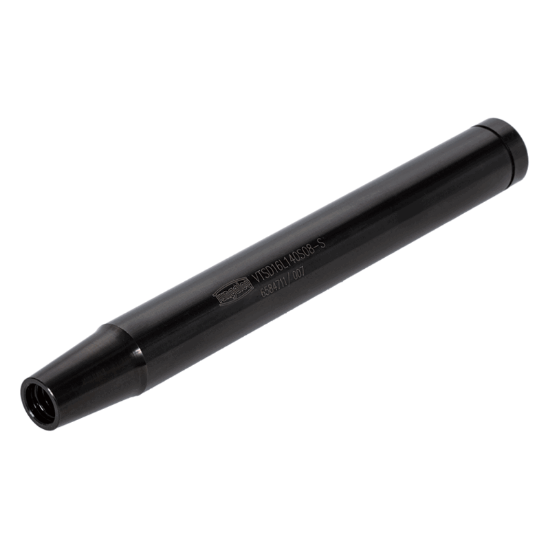

Picture of TUNGALOY VTSD20L170S08-S DIA 11.50MM SH 0.7874 LOC 3.1496 OAL 6.69Replacable Head Acc. Straight Shank/Taper Neck Steel Single End TUNG MEISTER

TUNGALOY VTSD20L170S08-S DIA 11.50MM SH 0.7874 LOC 3.1496 OAL 6.69Replacable Head Acc. Straight Shank/Taper Neck Steel Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859145
Delivery date: 3-5 days
$199.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling, Copy Milling, Feed Milling, Face Milling, Side Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Overall Len 6.6929 170.00MM
Cutter Dia 0.4527 11.50MM
Machine Side Connection Type Cylindrical
Length Of Cut 3.1496 80.00MM
Length Type Standard
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.453 x 0.787 x 3.150 x 6.693
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutter Style Screw On Tungaloy Shank
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Steel
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
