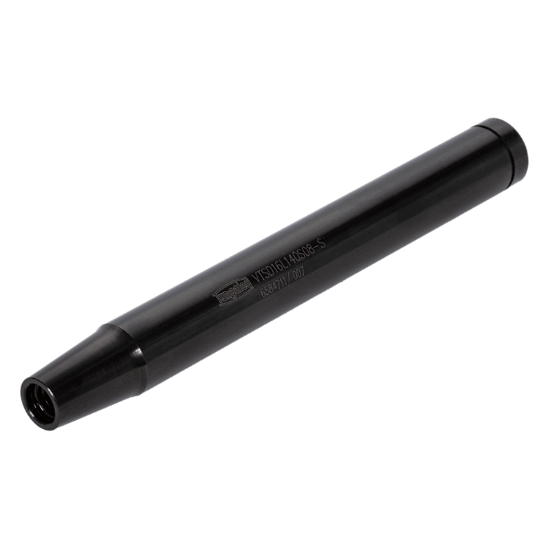

TUNGALOY VTSD20L170S08-C DIA 11.50MM SH 0.7874 LOC 4.7244 OAL 6.69Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859144
Delivery date: 3-5 days
$713.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Side Milling, Dovetail Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling, Face Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.4527 11.50MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Steel
Overall Len 6.6929 170.00MM
Length Of Cut 4.7244 120.00MM
Dimension Description 0.453 x 0.787 x 4.724 x 6.693
Length Type Standard
Cutter Style Screw On Tungaloy Shank
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
