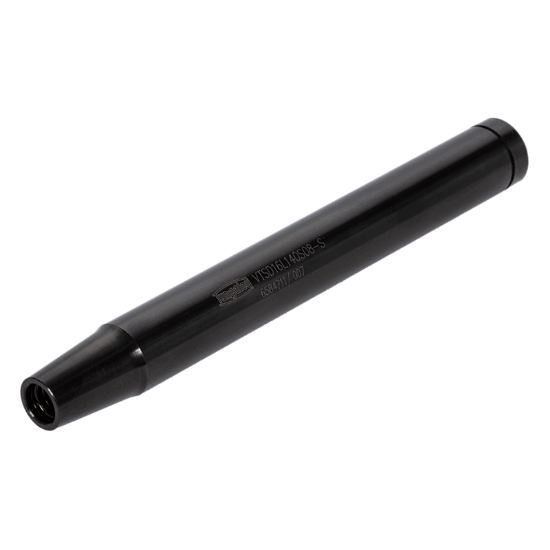

TUNGALOY VTSD16L150S08-C DIA 11.50MM SH 0.6299 LOC 3.9370 OAL 5.90 Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859166
Delivery date: 3-5 days
$652.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling, Feed Milling, Dovetail Milling, Face Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Length Of Cut 3.9370 100.00MM
Length Type Standard
Cutter Dia 0.4527 11.50MM
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Cutter Style Screw On Tungaloy Shank
Tool Material Steel
Dimension Description 0.453 x 0.630 x 3.937 x 5.906
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
