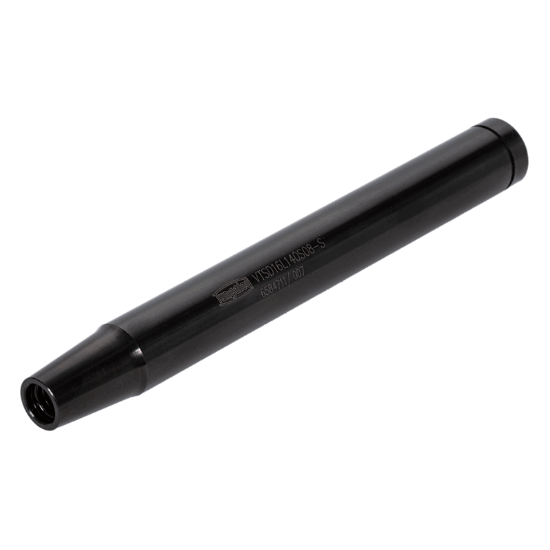

TUNGALOY VTS062L650S06UC DIA 0.3645 SH 0.6250 LOC 3.50 OAL 6.50 Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863874
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Dovetail Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling, Feed Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 6.5000 165.10MM
Dimension Description 0.365 x 0.625 x 3.500 x 6.500
Cutter Style Screw On Tungaloy Shank
Machine Side Connection Type Cylindrical
Length Of Cut 3.5000 88.90MM
Inch/Metric Inch
Cutter Dia 0.3645 9.26MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Medical Yes
Automotive Yes
Job Shop Yes
