  • TUNGALOY VSSD16L070S10-W-A DIA 15.20MM SH 0.6299 LOC 0.7874 OAL 2.75Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

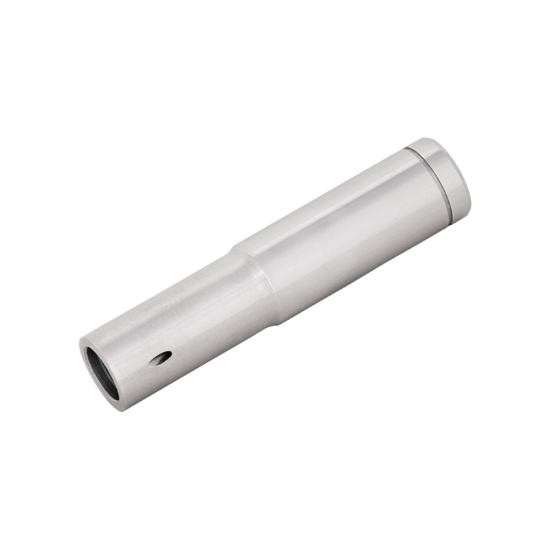

Picture of TUNGALOY VSSD16L070S10-W-A DIA 15.20MM SH 0.6299 LOC 0.7874 OAL 2.75Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

TUNGALOY VSSD16L070S10-W-A DIA 15.20MM SH 0.6299 LOC 0.7874 OAL 2.75Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859192
Delivery date: 3-5 days
$479.75

Cutting Edge Definition

Tungsten can be made into cutting blades or have it alloyed with other elements like nickel, copper, or carbon to strengthen. Cutting tools made from tungsten or its alloys are very hard and having a very high melting point means that they can be used hours on end without melting or failing. High dampening properties for long reach aplications.

Products specifications
Attribute name Attribute value
General Product Information
Application Circle Segment, Groove Milling, Slot Milling, Copy Milling, Feed Milling, Side Milling, Dovetail Milling, Face Milling, Profile Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.598 x 0.630 x 0.787 x 2.756
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Length Type Standard
Cutter Dia 0.5984 15.20MM
Machine Side Connection Type Cylindrical
Inch/Metric Metric
Length Of Cut 0.7874 20.00MM
Cutter Style Screw On Tungaloy Shank
Overall Len 2.7560 70.00MM
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Tungsten "Heavy Metal"
Industry-Specific Applications
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
