  • TUNGALOY VSSD10L090S06-W-A DIA 9.60MM SH 0.3937 LOC 1.5748 OAL 3.543Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

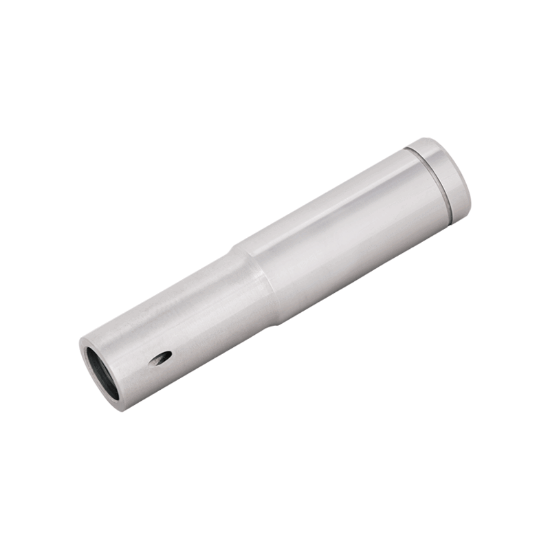

Picture of TUNGALOY VSSD10L090S06-W-A DIA 9.60MM SH 0.3937 LOC 1.5748 OAL 3.543Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

TUNGALOY VSSD10L090S06-W-A DIA 9.60MM SH 0.3937 LOC 1.5748 OAL 3.543Replacable Head Acc. Straight Shank/Coolant Hole Tungsten "Heavy Metal" Single End TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859149
Delivery date: 3-5 days
$417.15

Cutting Edge Definition

Tungsten can be made into cutting blades or have it alloyed with other elements like nickel, copper, or carbon to strengthen. Cutting tools made from tungsten or its alloys are very hard and having a very high melting point means that they can be used hours on end without melting or failing. High dampening properties for long reach aplications.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Copy Milling, Feed Milling, Side Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling, Face Milling, Dovetail Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Description 0.378 x 0.394 x 1.575 x 3.543
Cutter Style Screw On Tungaloy Shank
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Length Of Cut 1.5748 40.00MM
Length Type Standard
Overall Len 3.5433 90.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.3779 9.60MM
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Tungsten "Heavy Metal"
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
