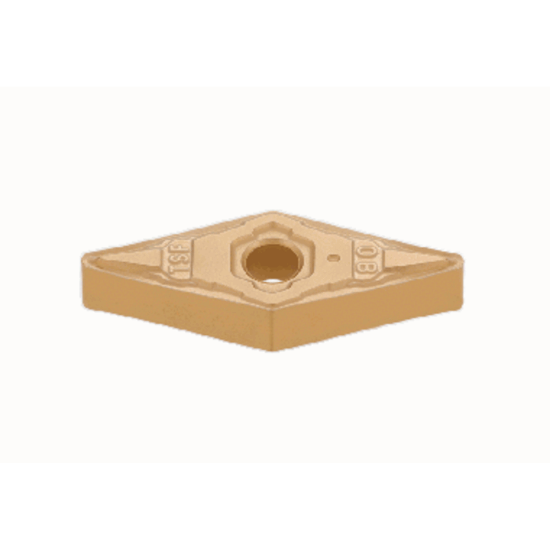

TUNGALOY VNMG332 TSF AT9530 Insert 35.0° TiAlN 0.031 Corner Radius

ANSI: VNMG332 TSF AT9530

ISO: VNMG160408 TSF AT9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6740746
Delivery date: 3-5 days
$13.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Negative relief ang., M class, 35deg rhombic insert, for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

High wear resistance. First choice for machining a lloy steel.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Insert/Tool Insert
Grade AT9530
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 16 "33"
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Carbide
