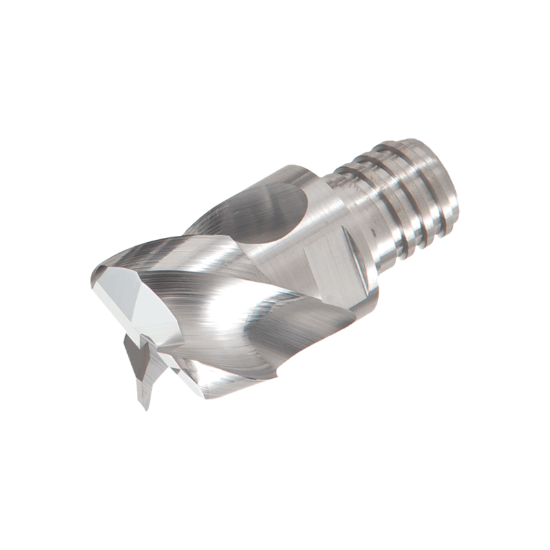

TUNGALOY VEE160L10.0R20A03S10 KS15F DIA 16MM SH T10 LOC 0.3937 OAL 0.8071End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859292
Delivery date: 3-5 days
$106.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Performance Rating High Performance
Made In USA No
Package Size 2
Shipping State Illinois
Dimensional Specifications
Dimension Description 0.630 x T10 x 0.394 x 0.807
End Of Tool Shape Corner Radius
Corner Radius 0.0787 2.00MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Machine Side Connection Size T10
Overall Len 0.8071 20.50MM
Cutter Style Screw On Corner Radius End Mill
Inch/Metric Metric
Single/Double End Single End
Length Type Standard
Chamfer Angle 90.0°
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
Length Of Cut 0.3937 10.00MM
Helix Angle 45°
Tool Material Carbide
Shank/Pilot Dia T10
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
