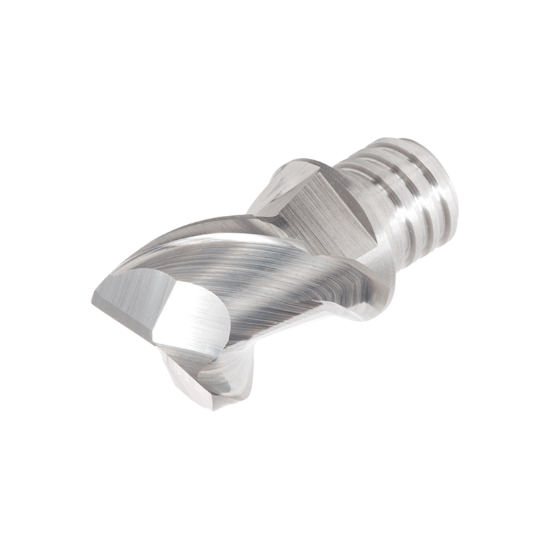

TUNGALOY VEE120L09.0R05A02S08 KS15F DIA 12MM SH T08 LOC 0.3543 OAL 0.6496End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6859453
Delivery date: 3-5 days
$64.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 2
Application Slot Milling, Side Milling, Copy Milling, Face Milling, Profile Milling
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Dimension Description 0.472 x T08 x 0.354 x 0.650
Overall Len 0.6496 16.50MM
Length Of Cut 0.3543 9.00MM
Shank/Pilot Dia T08
End Of Tool Shape Corner Radius
Corner Radius 0.0197 0.50MM
Helix Angle 45°
Chamfer Angle 90.0°
Cutter Dia 0.4724 12.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
