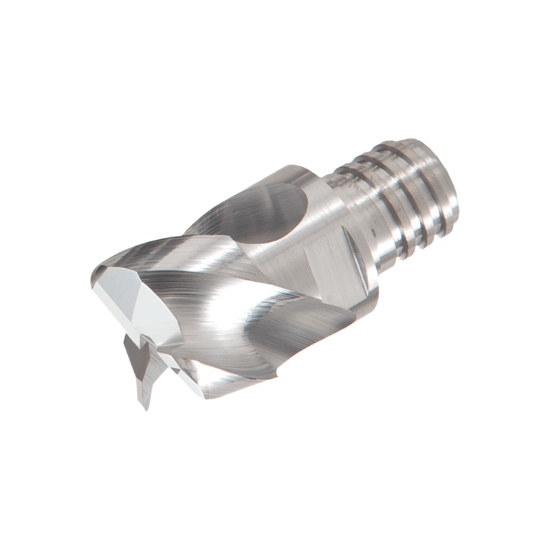

TUNGALOY VEE075L50R008AU03S12 KS15F DIA 3/4 SH T08 LOC 0.50 OAL 1.00End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863895
Delivery date: 3-5 days
$121.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 2
Application Profile Milling, Slot Milling, Face Milling, Copy Milling, Side Milling
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Helix Angle 45°
Dimension Description 0.750 x T08 x 0.500 x 1.000
Shank/Pilot Dia T08
End Of Tool Shape Corner Radius
Chamfer Angle 90.0°
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Overall Len 1.0000 25.40MM
Flutes/Inserts 3
Corner Radius 0.0080 0.20MM
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.5000 12.70MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
