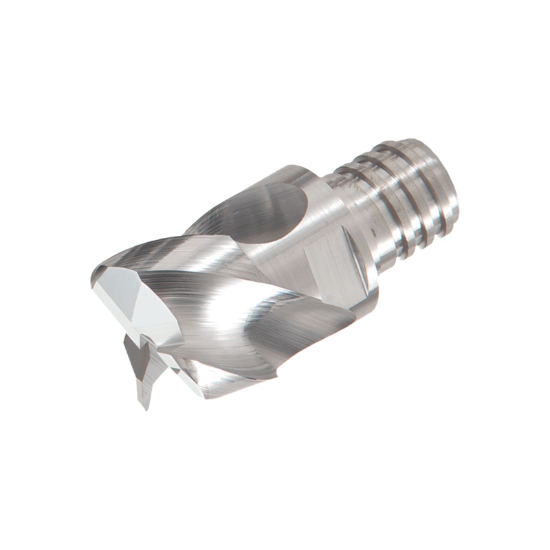

TUNGALOY VEE062L39R094AU03S10 KS15F DIA 5/8 SH T12 LOC 0.3906 OAL 0.8100End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0940 2.39MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864004
Delivery date: 3-5 days
$114.08

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 2
Dimensional Specifications
Dimension Description 0.625 x T12 x 0.391 x 0.810
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size T12
Shank/Pilot Dia T12
Overall Len 0.8100 20.57MM
Length Type Standard
Chamfer Angle 90.0°
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Corner Radius 0.0940 2.39MM
Length Of Cut 0.3906 9.92MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Medical Yes
