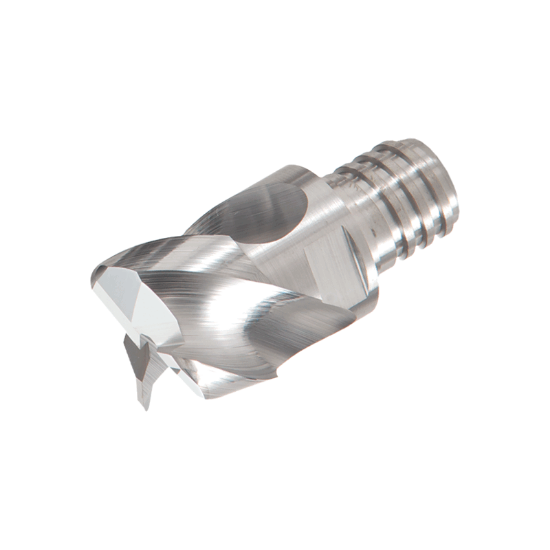

TUNGALOY VEE062L39R031AU03S10 KS15F DIA 5/8 SH T05 LOC 0.3906 OAL 0.8100End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0310 0.79MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864032
Delivery date: 3-5 days
$106.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Copy Milling, Side Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 2
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Length Of Cut 0.3906 9.92MM
End Of Tool Shape Corner Radius
Helix Angle 45°
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size T05
Overall Len 0.8100 20.57MM
Length Type Standard
Dimension Description 0.625 x T05 x 0.391 x 0.810
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Cutter Dia 0.6250 15.88MM - 5/8
Shank/Pilot Dia T05
Chamfer Angle 90.0°
Flutes/Inserts 3
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
