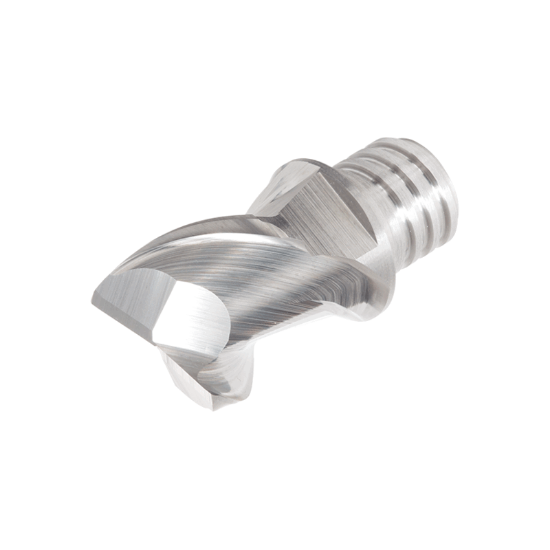

TUNGALOY VEE050L37R020AU02S08 KS15F DIA 1/2 SH T05 LOC 0.3700 OAL 0.6500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864178
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 2
Dimensional Specifications
Machine Side Connection Size T05
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia T05
Length Of Cut 0.3700 9.40MM
Dimension Description 0.500 x T05 x 0.370 x 0.650
Chamfer Angle 90.0°
End Of Tool Shape Corner Radius
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Cutter Dia 0.5000 12.70MM - 1/2
Overall Len 0.6500 16.51MM
Helix Angle 45°
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Inch/Metric Inch
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
