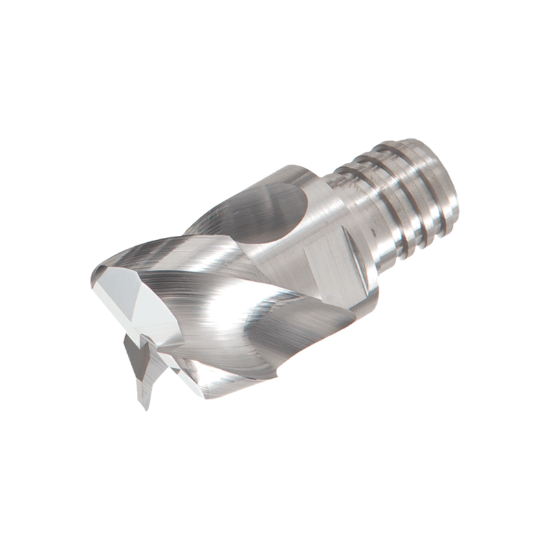

TUNGALOY VEE050L31R031AU03S08 KS15F DIA 1/2 SH T06 LOC 0.3102 OAL 0.6500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0310 0.79MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863958
Delivery date: 3-5 days
$66.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 2
Made In USA No
Dimensional Specifications
Dimension Description 0.500 x T06 x 0.310 x 0.650
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Chamfer Angle 90.0°
Machine Side Connection Type Screw On
Machine Side Connection Size T06
Flutes/Inserts 3
Corner Radius 0.0310 0.79MM
End Of Tool Shape Corner Radius
Overall Len 0.6500 16.51MM
Helix Angle 45°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia T06
Length Of Cut 0.3102 7.88MM
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
