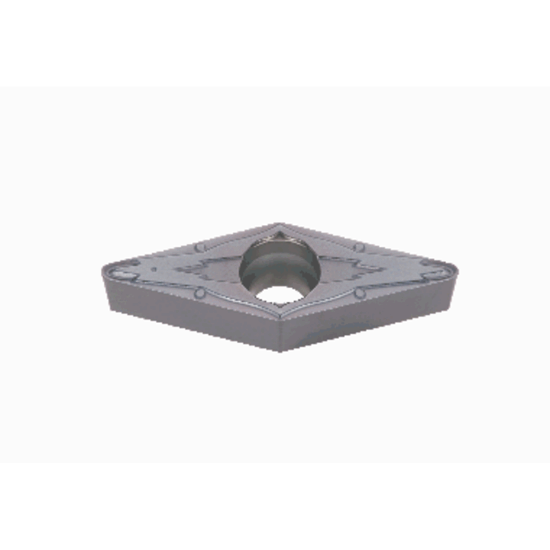

Picture of TUNGALOY VCMT332 PSF NS9530 Insert 35.0° 0.031 Corner Radius

TUNGALOY VCMT332 PSF NS9530 Insert 35.0° 0.031 Corner Radius

ANSI: VCMT332 PSF NS9530

ISO: VCMT160408 PSF NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998598
Delivery date: 3-5 days
$14.25

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 7deg relief ang., M class, 35deg rhombic insert, for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Positive
Package Size 10
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Application Turning Insert
Grade NS9530
Made In USA No
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style VC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 35.0°
