ANSI: VCMT331 DIA DX120
ISO: VCMT160404 DIA DX120
Share This:
PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

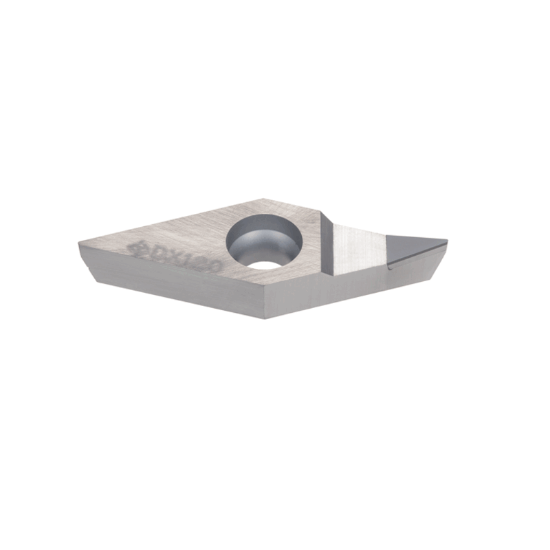

Positive 7deg relief ang., M class, 35deg rhombic PCD insert
PCD grade for precision machining of non-ferrous metals and nonmetals where high quality surface finish is required.
