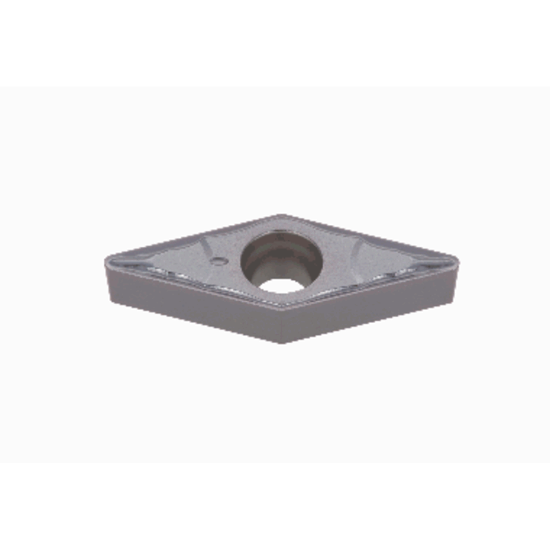

Picture of TUNGALOY VBMT332 PS NS9530 Insert 35.0° 0.031 Corner Radius

TUNGALOY VBMT332 PS NS9530 Insert 35.0° 0.031 Corner Radius

ANSI: VBMT332 PS NS9530

ISO: VBMT160408 PS NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998588
Delivery date: 3-5 days
$14.64

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing to medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Turning Insert
Package Size 10
Grade NS9530
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16 "33"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VB
Cutting Edge Mat Cermet
