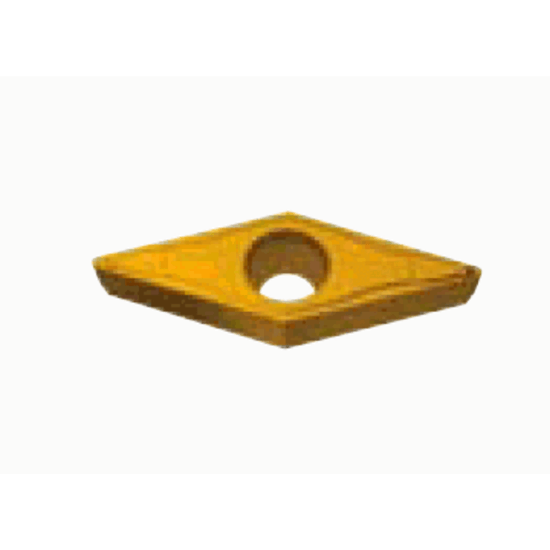

TUNGALOY VBMT221 PF GT9530 Insert 35.0° TiOCN 0.016 Corner Radius

ANSI: VBMT221 PF GT9530

ISO: VBMT110304 PF GT9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998383
Delivery date: 3-5 days
$13.95

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New coated cermet grade. GT9530 offers longer tool life in high speed machining.

Products specifications
Attribute name Attribute value
General Product Information
Grade GT9530
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Turning Insert
Insert Application Finishing
Insert Type Positive
Package Size 10
Coating TiOCN
Dimensional Specifications
Cut Rating <48HRC Steel
Corner Radius 0.0160 0.41MM
Insert Size Ic 11 "22"
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Cermet
