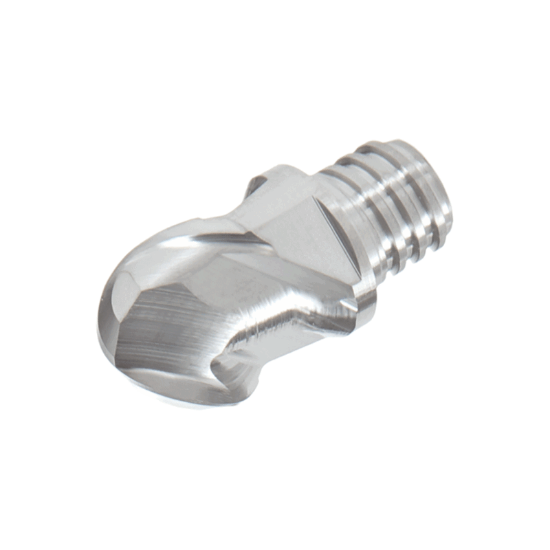

TUNGALOY VBE0750L50-BGAU02S12 KS15F DIA 3/4 SH T12 LOC 0.50 OAL 1.00End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball Nose TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863898
Delivery date: 3-5 days
$128.86

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Side Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Made In USA No
Package Size 2
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Ball Nose
Helix Angle 45°
Tool Material Carbide
Inch/Metric Inch
Flutes/Inserts 2
Length Type Standard
Cutter Style Screw On Ball Inserts
Shank/Pilot Dia T12
Single/Double End Single End
Dimension Description 0.750 x T12 x 0.500 x 1.000
Machine Side Connection Size T12
Length Of Cut 0.5000 12.70MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Overall Len 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
