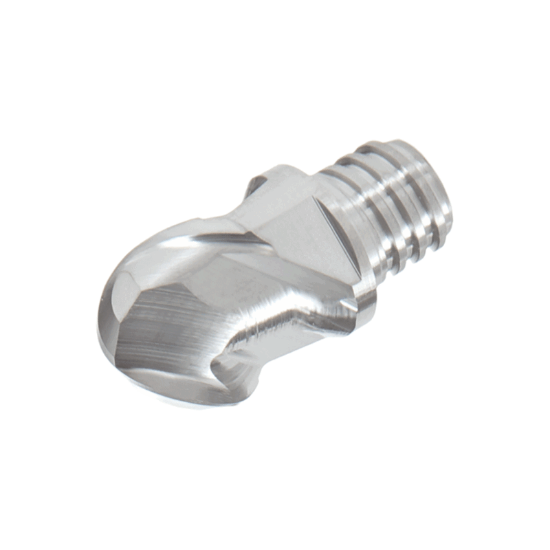

TUNGALOY VBE0625L47-BGAU02S10 KS15F DIA 5/8 SH T15 LOC 0.4700 OAL 0.80End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball Nose TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863934
Delivery date: 3-5 days
$112.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Side Milling, Ball Slot Milling
Made In USA No
Shipping State Illinois
Package Size 2
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia T15
End Of Tool Shape Ball Nose
Helix Angle 45°
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Dimension Description 0.625 x T15 x 0.470 x 0.800
Machine Side Connection Size T15
Flutes/Inserts 2
Length Of Cut 0.4700 11.94MM
Cutter Style Screw On Ball Inserts
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 0.8000 20.32MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
