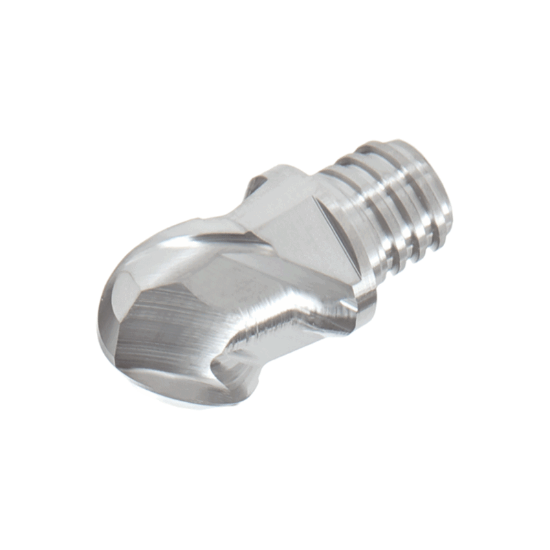

TUNGALOY VBE0500L37-BGAU02S08 KS15F DIA 1/2 SH T08 LOC 0.3700 OAL 0.6500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball Nose TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863897
Delivery date: 3-5 days
$72.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Made In USA No
Shipping State Illinois
Package Size 2
Performance Rating High Performance
Dimensional Specifications
Length Of Cut 0.3700 9.40MM
Dimension Description 0.500 x T08 x 0.370 x 0.650
Machine Side Connection Size T08
End Of Tool Shape Ball Nose
Shank/Pilot Dia T08
Single/Double End Single End
Flutes/Inserts 2
Cutter Style Screw On Ball Inserts
Overall Len 0.6500 16.51MM
Helix Angle 45°
Cutter Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
