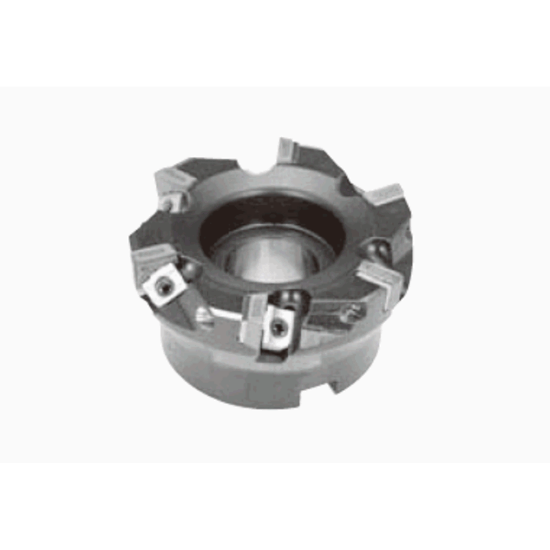

Picture of TUNGALOY TZP19100R Milling Cutter 3.937 Cutter Diameter Shell Arbor 1.2500 2.480 OAL 5 Flute

TUNGALOY TZP19100R Milling Cutter 3.937 Cutter Diameter Shell Arbor 1.2500 2.480 OAL 5 Flute

ANSI: TZP19100R

ISO: TZP19100R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6815355
Delivery date: 3-5 days
$809.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Application Plunge Milling
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 2.4803 63.00MM
Depth Of Cut Max 0.0197
Cut Dia Min 3.9370 100.00MM
Flutes/Inserts 5
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 19
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Seat/Nest 6816035
Insert Style AP
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Clamp Screw 6816092
Clamp/Wedge 6809867
Seat Screw 6802547
