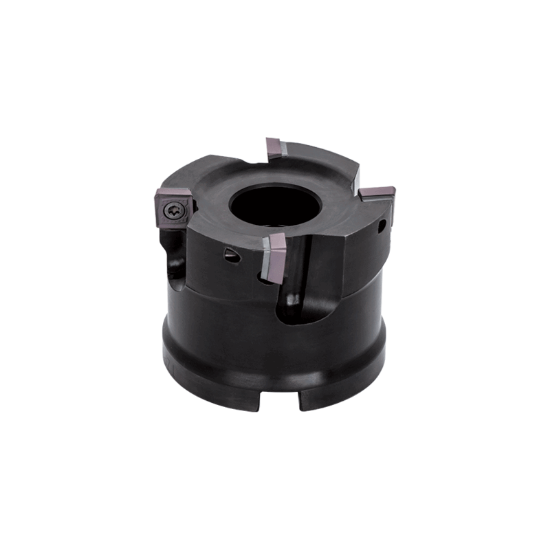

Picture of TUNGALOY TZP12050R Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 1.968 OAL 3 Flute

TUNGALOY TZP12050R Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 1.968 OAL 3 Flute

ANSI: TZP12050R

ISO: TZP12050R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6815351
Delivery date: 3-5 days
$371.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Plunge Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Overall Len 1.9685 50.00MM
Cut Dia Max 1.9690 50.01MM
Flutes/Inserts 3
Insert Size Ic 12
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 0.8661 22.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0197
Cutting & Machining Properties
Hand R/L Right
Seat/Nest 6816034
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Coolant Thru No
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6802572
