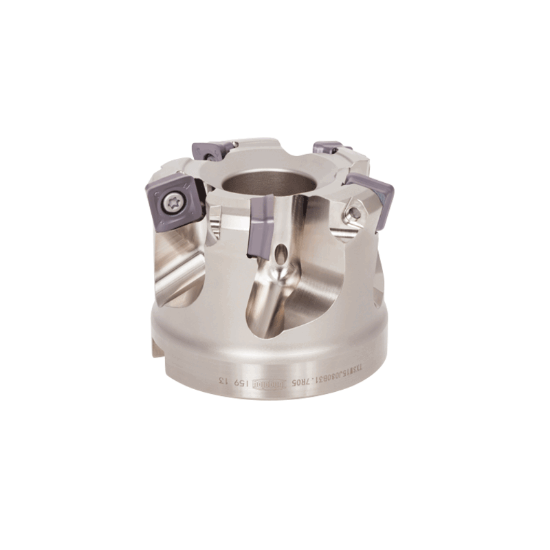

Picture of TUNGALOY TXSW15U6.00B2.00R08 Milling Cutter 6.000 Cutter Diameter Shell Arbor 2.0000 8 Flute

TUNGALOY TXSW15U6.00B2.00R08 Milling Cutter 6.000 Cutter Diameter Shell Arbor 2.0000 8 Flute

ANSI: TXSW15U6.00B2.00R08

ISO: TXSW15U6.00B2.00R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735333
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 8
Cutter Dia 6.0000 152.40MM
Cut Dia Min 6.0000 152.40MM
Cut Dia Max 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 2.4016
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 4351710
