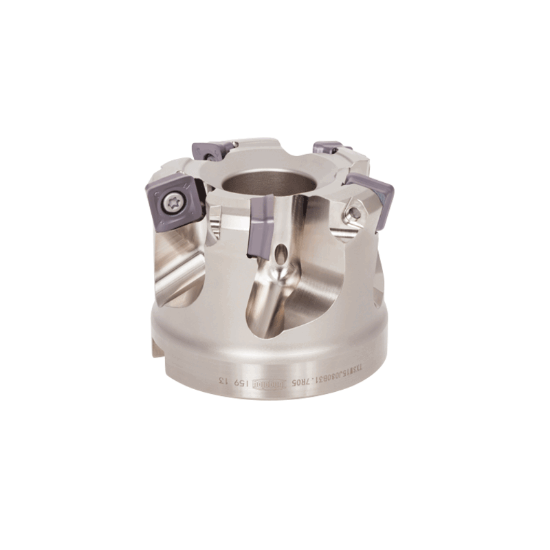

Picture of TUNGALOY TXSW15M160B40.0R08 Milling Cutter 6.299 Cutter Diameter Shell Arbor 1.5748 8 Flute

TUNGALOY TXSW15M160B40.0R08 Milling Cutter 6.299 Cutter Diameter Shell Arbor 1.5748 8 Flute

ANSI: TXSW15M160B40.0R08

ISO: TXSW15M160B40.0R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735323
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Ramp Milling, Face Milling, Slot Milling, Copy Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0984
Machine Side Connection Size 1.5748 40.00MM
Flutes/Inserts 8
Cut Dia Max 6.2990 159.99MM
Cut Dia Min 6.2990 159.99MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 6.2990 159.99MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 4351710
