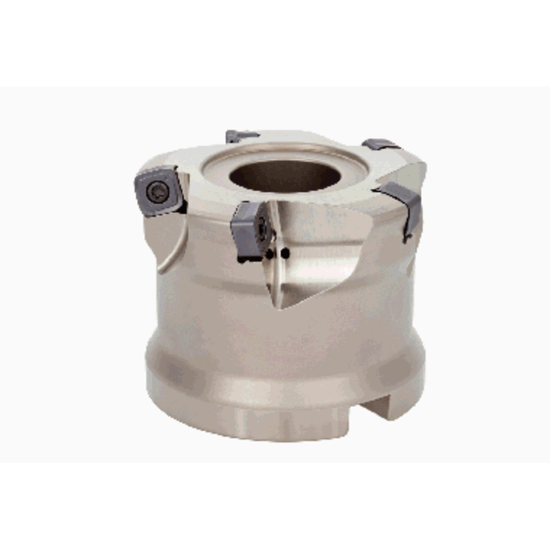

Picture of TUNGALOY TXQ12R200U0075A04 Milling Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

TUNGALOY TXQ12R200U0075A04 Milling Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

ANSI: TXQ12R200U0075A04

ISO: TXQ12R200U0075A04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990522
Delivery date: 3-5 days
$651.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Feed Milling, Copy Milling
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.4173
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7011251
