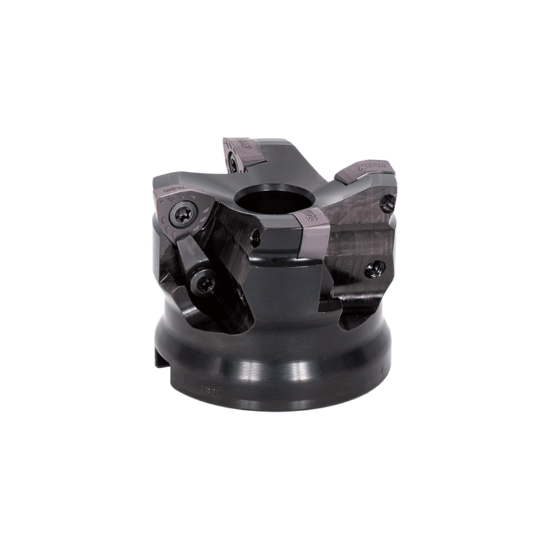

Picture of TUNGALOY TXP09080R Milling Cutter 3.150 Cutter Diameter Shell Arbor 1.2500 4 Flute

TUNGALOY TXP09080R Milling Cutter 3.150 Cutter Diameter Shell Arbor 1.2500 4 Flute

ANSI: TXP09080R

ISO: TXP09080R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821853
Delivery date: 3-5 days
$831.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Depth Of Cut Max 0.1181
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.1500 80.01MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Fasteners & Connectors
Clamp/Wedge 6821843
Insert Screw 6821842
