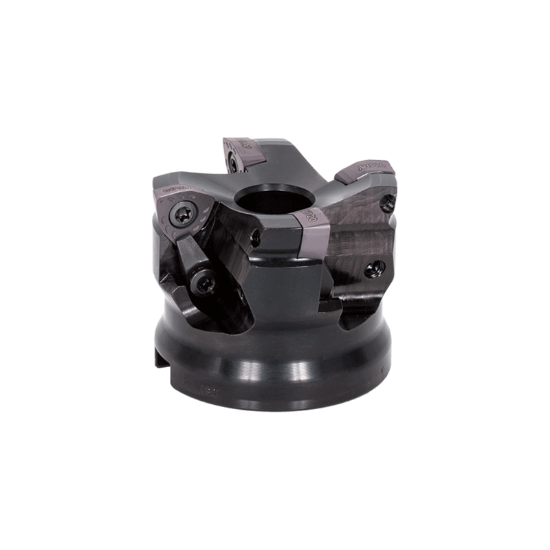

Picture of TUNGALOY TXP09080R-E Milling Cutter 3.150 Cutter Diameter Shell Arbor 0.6300 4 Flute

TUNGALOY TXP09080R-E Milling Cutter 3.150 Cutter Diameter Shell Arbor 0.6300 4 Flute

ANSI: TXP09080R-E

ISO: TXP09080R-E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6843681
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6400
Cut Dia Min 3.1500 80.01MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Fasteners & Connectors
Insert Screw 6821842
Clamp/Wedge 6821843
