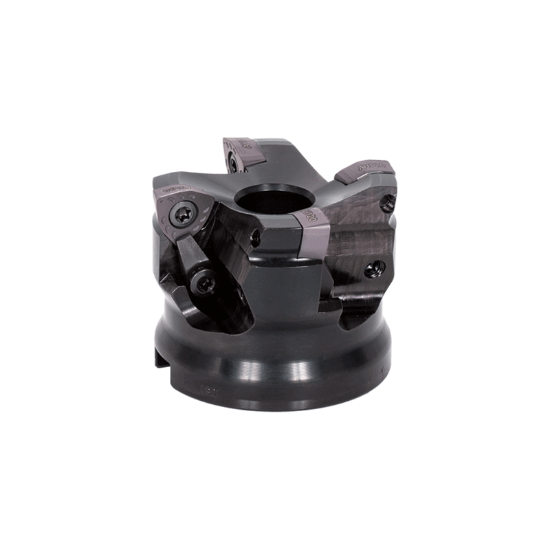

Picture of TUNGALOY TXP08050RA Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

TUNGALOY TXP08050RA Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

ANSI: TXP08050RA

ISO: TXP08050RA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821429
Delivery date: 3-5 days
$476.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0600
Tool Material Steel
Flutes/Inserts 3
Cut Dia Max 1.9690 50.01MM
Cut Dia Min 1.9690 50.01MM
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge 6816089
Insert Screw 6802582
