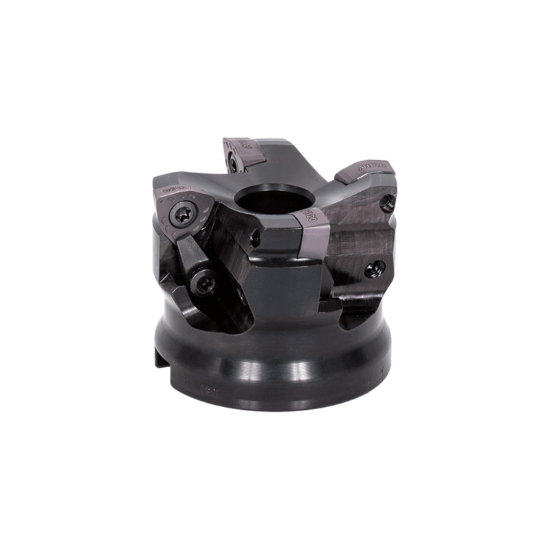

Picture of TUNGALOY TXP08050R-E Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

TUNGALOY TXP08050R-E Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

ANSI: TXP08050R-E

ISO: TXP08050R-E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6816356
Delivery date: 3-5 days
$476.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0591
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 1.9690 50.01MM
Flutes/Inserts 3
Cut Dia Min 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge 6816089
Clamp Screw 6802582
