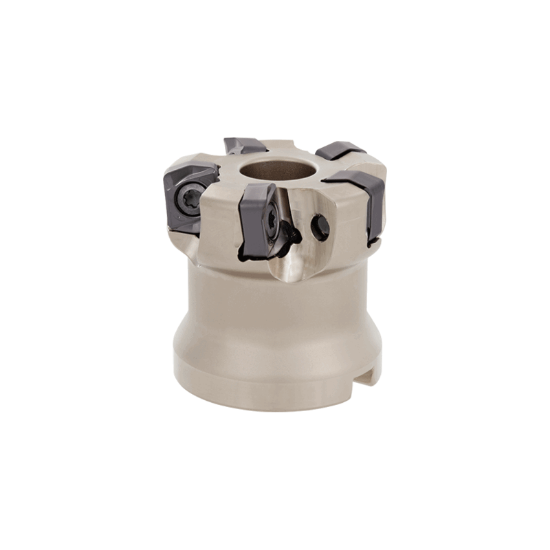

Picture of TUNGALOY TXN06R500U0150A12 Milling Cutter 5.000 Cutter Diameter Shell Arbor 1.5000 12 Flute

TUNGALOY TXN06R500U0150A12 Milling Cutter 5.000 Cutter Diameter Shell Arbor 1.5000 12 Flute

ANSI: TXN06R500U0150A12

ISO: TXN06R500U0150A12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6710727
Delivery date: 3-5 days
$1,422.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 12
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 6
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 5.0000 127.00MM
Depth Of Cut Max 0.0590
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Cut Dia Min 5.0000 127.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Barbell
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6821842
