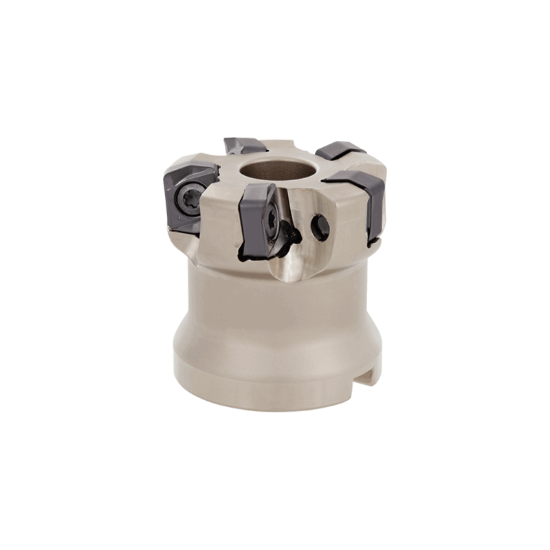

TUNGALOY TXN06R250U0075A04 Milling Cutter 2.500 Cutter Diameter Shell Arbor 0.7500 4 Flute

ANSI: TXN06R250U0075A04

ISO: TXN06R250U0075A04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6705804
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.0590
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Insert Size Ic 6
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Barbell
Fasteners & Connectors
Insert Screw 6821842
