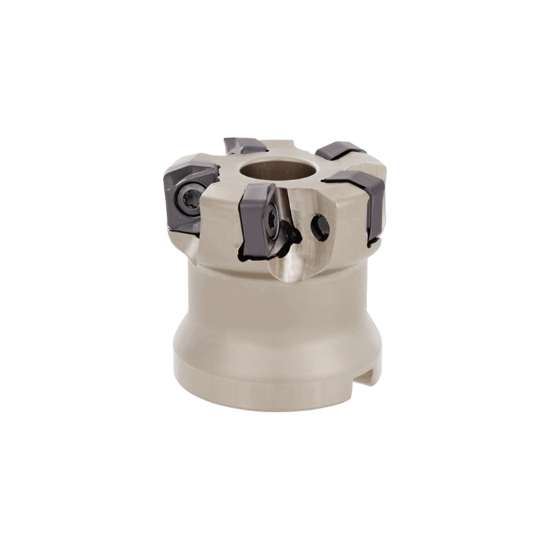

Picture of TUNGALOY TXN06R080M27.0E08 Milling Cutter 3.150 Cutter Diameter Cylindrical Shank1.0630 8 Flute

TUNGALOY TXN06R080M27.0E08 Milling Cutter 3.150 Cutter Diameter Cylindrical Shank1.0630 8 Flute

ANSI: TXN06R080M27.0E08

ISO: TXN06R080M27.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885142
Delivery date: 3-5 days
$1,112.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Insert Size Ic 6
Shank/Pilot Dia 1.0630 27.00MM
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 8
Depth Of Cut Max 0.0590
Cutter Dia 3.1500 80.01MM
Machine Side Connection Size 1.0630 27.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Barbell
Fasteners & Connectors
Insert Screw 6821842
