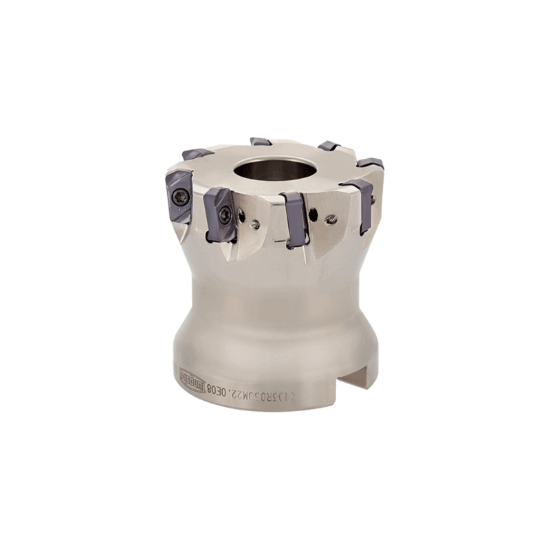

Picture of TUNGALOY TXN03R200U0075A08 Milling Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

TUNGALOY TXN03R200U0075A08 Milling Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

ANSI: TXN03R200U0075A08

ISO: TXN03R200U0075A08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6988406
Delivery date: 3-5 days
$822.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.0390
Cutter Dia 2.0000 50.80MM
Insert Size Ic 30
Flutes/Inserts 8
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
