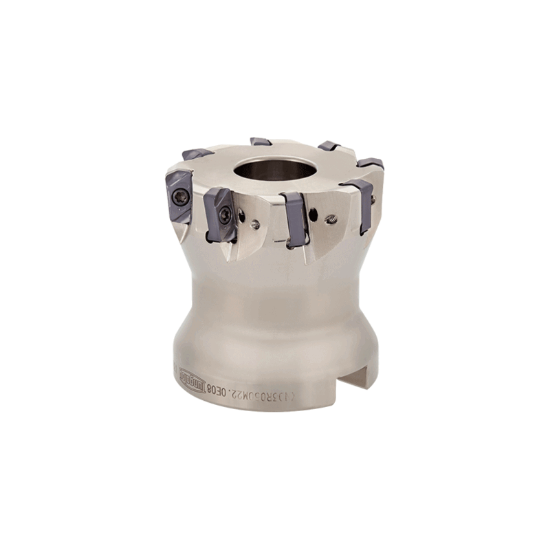

Picture of TUNGALOY TXN03R050M22.2-08 Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 8 Flute

TUNGALOY TXN03R050M22.2-08 Milling Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 8 Flute

ANSI: TXN03R050M22.2-08

ISO: TXN03R050M22.2-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6993974
Delivery date: 3-5 days
$822.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Type Negative
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 30
Flutes/Inserts 8
Machine Side Connection Size 0.8750 22.23MM
Depth Of Cut Max 0.0390
Cut Dia Max 1.9690 50.01MM
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 1.9690 50.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
