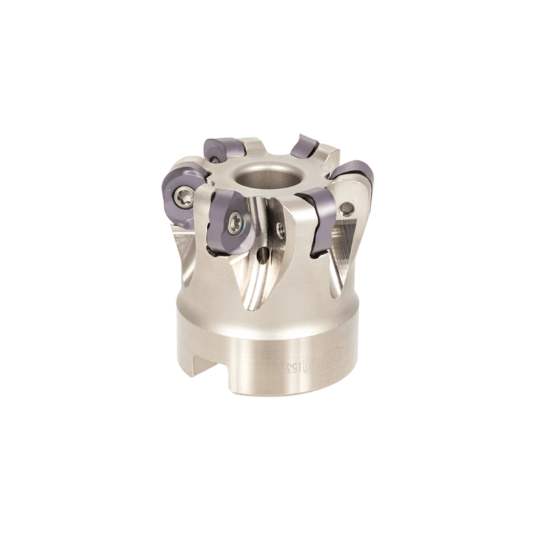

Picture of TUNGALOY TXLN05M040B16.0R05 Milling Cutter 1.575 Cutter Diameter Shell Arbor 0.6300 5 Flute

TUNGALOY TXLN05M040B16.0R05 Milling Cutter 1.575 Cutter Diameter Shell Arbor 0.6300 5 Flute

ANSI: TXLN05M040B16.0R05

ISO: TXLN05M040B16.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6743392
Delivery date: 3-5 days
$620.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Insert/Tool Tool
Application Profile Milling, Copy Milling, Feed Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.1969
Cut Dia Max 1.5750 40.01MM
Machine Side Connection Size 0.6299 16.00MM
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 4
Cutter Dia 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Teardrop
Fasteners & Connectors
Insert Screw 6816784
