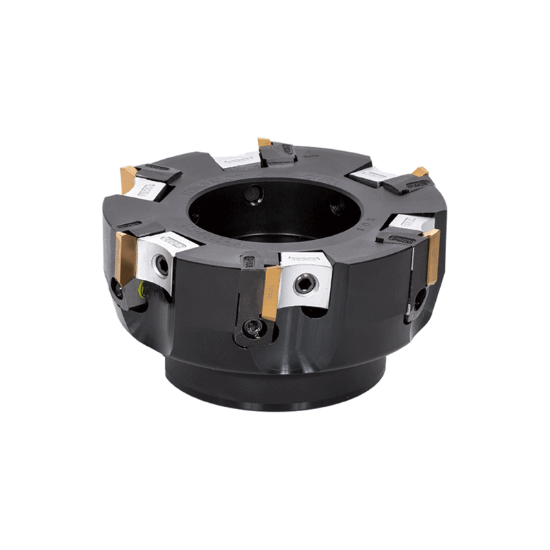

Picture of TUNGALOY TSP4010RIA Milling Cutter 90.0° 9.843 Cutter Diameter Shell Arbor 1.8750 12 Flute

TUNGALOY TSP4010RIA Milling Cutter 90.0° 9.843 Cutter Diameter Shell Arbor 1.8750 12 Flute

ANSI: TSP4010RIA

ISO: TSP4010RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809361
Delivery date: 3-5 days
$1,796.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 43
Cut Dia Min 9.4830 240.87MM
Flutes/Inserts 12
Cutter Dia 9.8430 250.01MM
Cut Dia Max 9.4830 240.87MM
Machine Side Connection Size 1.8750 47.63MM
Depth Of Cut Max 0.0394
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Insert Style TP
Hand R/L Right
Seat/Nest 6805132
Fasteners & Connectors
Clamp/Wedge 6809563
Seat Screw 6801818
Clamp Screw 6804584
