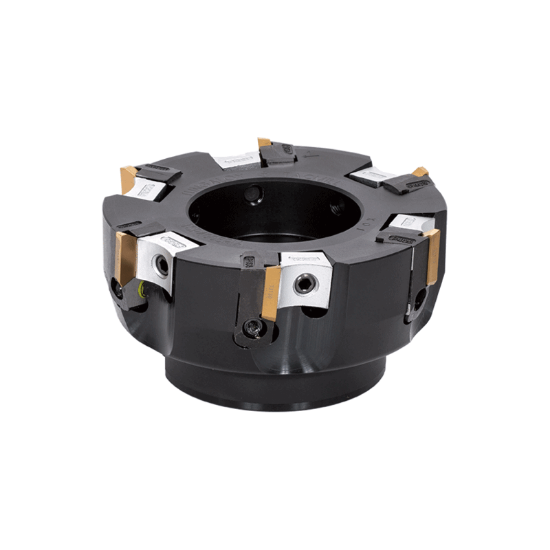

Picture of TUNGALOY TSP4006RIA Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 8 Flute

TUNGALOY TSP4006RIA Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 8 Flute

ANSI: TSP4006RIA

ISO: TSP4006RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809357
Delivery date: 3-5 days
$1,247.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 6.2990 159.99MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0394
Flutes/Inserts 8
Cut Dia Min 6.2990 159.99MM
Tool Material Steel
Insert Size Ic 43
Cut Dia Max 6.2990 159.99MM
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest 6805132
Hand R/L Right
Insert Style TP
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6809563
Seat Screw 6801818
Clamp Screw 6804584
