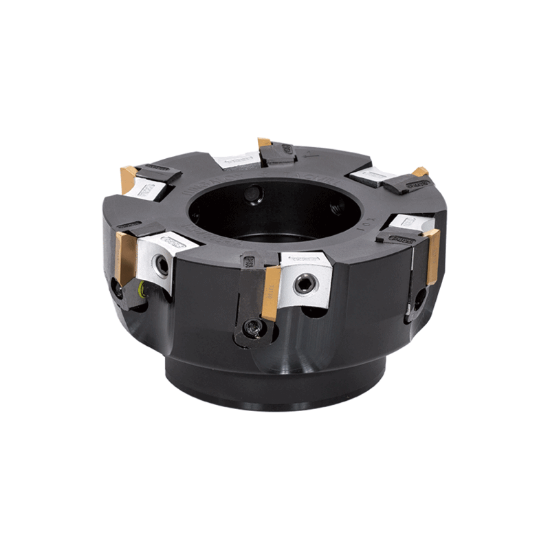

Picture of TUNGALOY TSP4005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TSP4005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TSP4005RIA

ISO: TSP4005RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809355
Delivery date: 3-5 days
$1,003.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 43
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Depth Of Cut Max 0.0394
Cut Dia Max 4.9210 124.99MM
Cutting & Machining Properties
Seat/Nest 6805132
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Insert Style TP
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6809563
